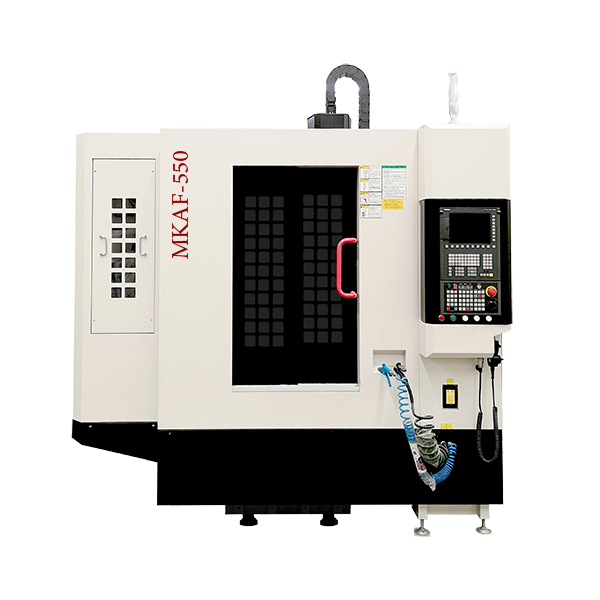

V. Vertical five-axis door type machining center: MKFA-550
Specifications
Unit
MKFA-550
Workbench size
600×440
mm
T-slot (number × slot width × gap)
mm
14 × 100 ×4
Maximum load
200
kg
X/Y/Z travel length
mm
550/400/350
Spindle end to the work surface distance
mm
125-475
Spindle center to the column distance
mm
243
Rotating speed of the main spindle
rpm
40000 (built-in)
Spindle conical degree
HSK E32-100
X/Y/Z-axis rapid traverse speed
m/min
15/15/15
Cutting speed
mm/min
1-10000
Setting accuracy
X/Y/Z：0.006
mm
Repeat setting accuracy
mm
X/Y/Z：0.004
Tool magazine type (disk type)
т
20
Maximum cutting tool diameter / length / weight
Φ60/150/3
mm\mm\kg
Tool exchange time (T-T)
s
1.4
System
Machine weight
kg
4200
Machine sizes (length × width × height)
mm
2400×1930×2675
