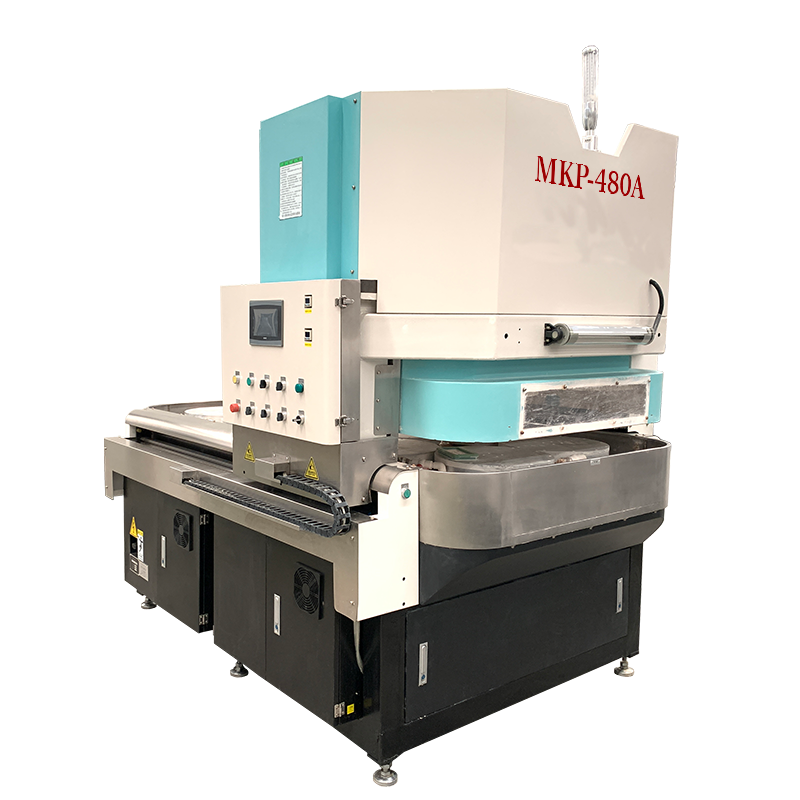

IX. Polishing CNC Machine: MKP-480A
Specifications
Unit
MKP-480A
Workbench diameter & quantity
Ø420*5
mm
T-slot (number × slot width × gap)
mm
5×100×18
Work station
A station B station
kg
Workbench gear ratio
1:2
Workbench rotating speed
rmp
0-60
X-axis distance
mm
1250
Y-axis distance
mm
280
Work station distance between AB disks
1250
mm
Distance between upper disk and lower disk
mm
10-290
Upper disk diameter * quantity
mm/min
500 * 4
Maximum speed of upper disk
278
rmp
Upper disk pressure range
kg
5-700
Lower disk motor / rated power
kw
5.5
Rated torque
36
N.m
Plastic extruder reduction ratio of lower disk
1:49.43
Upper disk motor / rated power
kw
3.0
Rated torque
Nm
14.8
Plastic extruder reduction ratio of upper disk
1:5.21
Z-axis servo motor
VRSF-S9D-750
Rated power
kw
0.75
Allowable torque
Nm
18.2
Machine weight
kg
4000
Machine size
mm
2333x2423x2837
